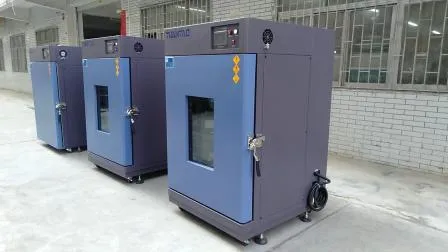

Hot Air Oven Lab Drying Test Equipment for Coil Motor Transformer Drying

Basic Info

Model NO.	YPO-270
Loading Method	Static Load
Display	Digital
Control	Manual Control
Weight	100-500Kg
Power Source	AC380V
Oil Cylinder Position	N/a
Volume	2160 Liters
Temp. Fluctuation	+/-0.3 Degree
Color	Ivory
Interior Chamber Material	SUS#304 Stainless Steel Plate
Exterior Chamber Material	Cold Rolled Plate + Powder Coated
Circulation System	Circle Fan
Indication Resolution	0.1degree / 1 Degree
Heat up Time	60 Mins
Transport Package	Well Packed in Strong Wooden Case.
Specification	1 set
Trademark	Yuanyao
Origin	Guangdong, China
HS Code	9032100000
Production Capacity	100 Sets / Month

Product Description

Customized Hot Air Oven Drying Test Equipment



Brief Introduction & Main application:

High temperature industrial test chamber is widely used to test materials resistance performance in high temperature test condition. It is widely applied to Circuit boards, electronic component, photoelectric device, electroplating metal, plastic chemical industry, printing industry, processing coating, ceramic glass and transformer, inductance coil, motor coil baking, drying, aging, etc

Main Features:

1. Microcomputer electronic digital control, precision & reliability.2. High temperature endurance & non-aging.3. Observation view window, easy operation.4. Forced circulation air, the temperature rise fast, even distribution.5. PID control, double overheating protection, safety and reliability.6. Two groups of moving plates can be adjusted height. 9 Best after sales service: One year free parts warranty service.7. Meet international test standards.8. Customization is available & welcomed.
Technical parameters

Specification
Model			YPO-072	YPO-270	YPO-480	YOP-600	YPO-720
Internal Sim.WHD(mm)			400×450×400	600×900×500	800×1000×600	1000×1000×600	1200×1000×600
External Dim.W×H×D(mm)			750×1200×550	1050×1650×740	1200×1700×840	1400×1750×840	1750×1750×840
Temp.Range			Room Temp.+25ºC---+200ºC(300ºC)
Ferformance		Temp.&Humi,Constancy	±0.3ºC
		Temp.&Humi,Constancy	±0.1ºC AT 200ºC;±1.5% AT 300ºC
		Indication Resolution	0.1ºC/1ºC
		Heat-up Time( min.)	Approx.60min.
Material		Exterior	Cold rolled plate+Baked Enamel
		Interior	SUS#304 stainless steel piate
		Insulation	Fiberglass Wool
SYSTEMS		Cirulation	Circle Fen
		Heating	Chrome Steel Strip Wire Heater
		Controller	Electric Digital Control+S.S.R.
door			Double-Wing
Other Components			Environmental Control Indicator Lights,
			Experiment Separation Shelves(2 pcs).
Sevey Devices			Overheating Prevention Circuit breaker,
			Control System,Breakdown Indicator Light.
Power Source[K.W.]			AC 1Ψ 220V ; 3Ψ 380V 60/50Hz
Any requested size and TEMP. range(max.1200ºC)will be considered.

Except High temperature resistance test chamber, Dongguan Yuan Yao Electronics Technology also can supply:Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester,Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber,Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.Other styles with different configuratitions are also available upon request, welcome to enquire and contact us anytime!
