Rubber Stabilized Vacuum Pump High Temperature Drying Oven
Rubber Stabilized Vacuum Pump High Temperature Drying Oven Introduction Rubber Stabilized Vacuum Pump High Temperature D;
Basic Info
Model NO. | YVO-480 |
Loading Method | Static Load |
Display | Digital |
Control | Controller |
Weight | 100-500Kg |
Power Source | AC380V |
Oil Cylinder Position | N/a |
Inner Size | 80*100*60cm |
External Size | 110*172*77cm |
Volume | 480 Liters |
Temp. Fluctuation | +/-0.3 Degree |
Color | Ivory |
Interior Chamber Material | SUS#304 Stainless Steel Plate |
Exterior Chamber Material | Stainless Steel Plate + Powder Coated |
Circulation System | Circle Fan |
Indication Resolution | 0.1degree / 1 Degree |
Heat up Time | 60 Mins |
Transport Package | Strong Wood Carton |
Specification | YVO-480 |
Trademark | Yuanyao |
Origin | China |
HS Code | 9032100000 |
Production Capacity | 100 Sets/Month |
Product Description

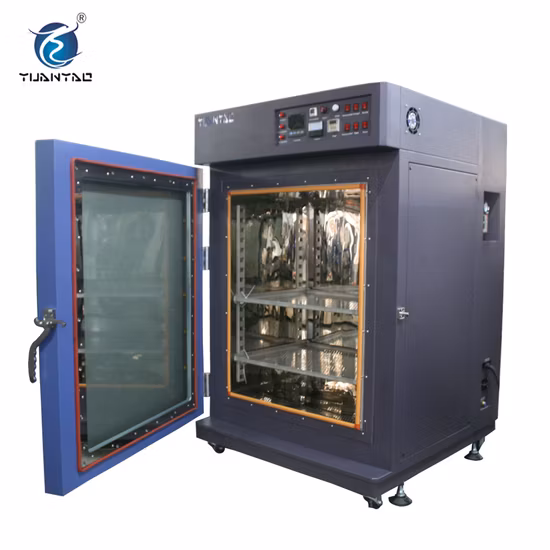

Rubber Stabilized Vacuum Pump High Temperature Drying OvenIntroduction
Rubber Stabilized Vacuum Pump High Temperature Drying Oven can provide a stable testing space and temperature for pre-heating, drying, changes about physics and chemistry testing. It adopts high precision temperature controller with highStability of platinum resistance to temperature that makes temperature well distribution. It is widely used to test a variety of products, materials, electric, instruments, meters, components, electronics, electriciansAnd automobiles, aviations, plastics, machinery, chemicals, foods, hardware tools for doing drying testAnd various constant adaptive tests at an constant temperature condition.Performance Feature
1. Adopt computerized electronic digital control, precise & reliable.2. The packing of box insulation is molded by silicone, high-temperature enduring & never agedAttached with observation view window, easy to be used.3. Heating is by compulsory circulating ventilation, temperature raising is fast and spread even.4. Provide the P. I. D. Control system, double sided overheating protection, safe & reliable.5. Easy to set temperature, easier to operate.6. Attached with two sets of movable disks to be adjusted high and low at your dispel.
Technicial parameters
Model No. | YVO-072 | YVO-270 | YVO-480 | YVO-600 | YVO-720 | YVO-1000 | |
Internal chamber size (W*H*D) cm | 40×45×40 | 60×90×50 | 80×100×60 | 100×100×60 | 100×120×60 | 100×100×100 | |
External chamber size (W*H*D) cm | 72×116×56 | 93×163×67 | 110×172×77 | 130×172×77 | 116×170×116 | 116×150×166 | |
Temperature range | RT+25ºC~200ºC(Max. 400ºC) | ||||||
Vacuum degree | Normal pressure to 3K Pa (Min 5 Pa can be customized) | ||||||
Temp fluctuation | ±3%ºC | ||||||
Control resolution | 0.1ºC | ||||||
Heat-up time | RT+25~200ºC<90min | ||||||
RT+25~400ºC<120min | |||||||
External chamber material | Cold rolled sheet + powder coating | ||||||
Interior chamber material | SUS#304 Stainless steel | ||||||
Insulation | fiberglass wool | ||||||
Heating system | SUS#Stainless steel high-speed heater | ||||||
Control system | Button type digital display controller | ||||||
Vacuum system | Vacuum pump + solenoid valve + vacuum gauge | ||||||
Power supply | AC 3Ψ 380V 60/50Hz | ||||||
Customazition service | Non-standard or special requirements can be customized. |
Except Rubber Stabilized Vacuum Pump High Temperature Drying Oven, we also can supply:Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.If you have any question, please feel free to contact us!
