Transformer Manufacturing 30 Ton Core Stacking and Tilting Table

Basic Info

Product Description

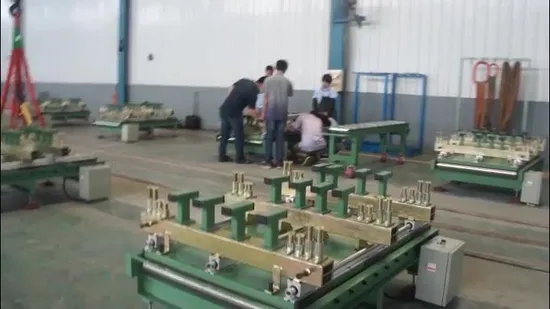

FT30 iron core turning table for medium transformer

1.Summary

Core tilting and stacking table is the special equipment for stackingand tilting transformer lamination especially for large and medium transformer.
2.Basic structure

1)stacking table is consist of base, slide rail , linear and kinds of support etc.

The overall floor were fixed with three slide rail, a fixed rail on the slippery course arrangement and two sliding rail, on both sides of two sliding rail is adjustable.

2)On the both ends of fixed rail and slippery course has total six telescopic long strips, decorate in the fixed railand the top of the slide rail have piled up the fixed bracket (a total of 12 pieces) and the adjustable support (total 6 PCS), and other basic components.

3)Fixed bracket and the bottom of the adjustable support configuration magnetic structure, facilitate random orientation, and make sure the platform not fall of when working.

Sliding rail flexible, equipped with a locking mechanism, in place can be carried out after the positioning lock, to prevent accidental slip.
